Local LLM Hardware: GPU vs Mac in 2026

Buying hardware to run models locally usually starts from parameter counts, which is the wrong unit. A "27B model" tells you nothing you can act on; the file you have to hold in memory is what decides whether the machine works.

So we measured it. Pulling real download sizes from Ollama's library on September 14, 2026 and applying a stated headroom rule, an 8 GB GPU fits none of the models in this list, not even the smallest. A 16 GB card fits two. The jump that actually buys you something is 24 GB, and after that the interesting question stops being GPU versus GPU and becomes GPU versus Mac.

Parameters Lie, File Sizes Do Not

A model's parameter count is a spec-sheet number. What you load is a quantized file, and the relationship between the two is not fixed: quantization level, MoE versus dense, and vocabulary size all move it.

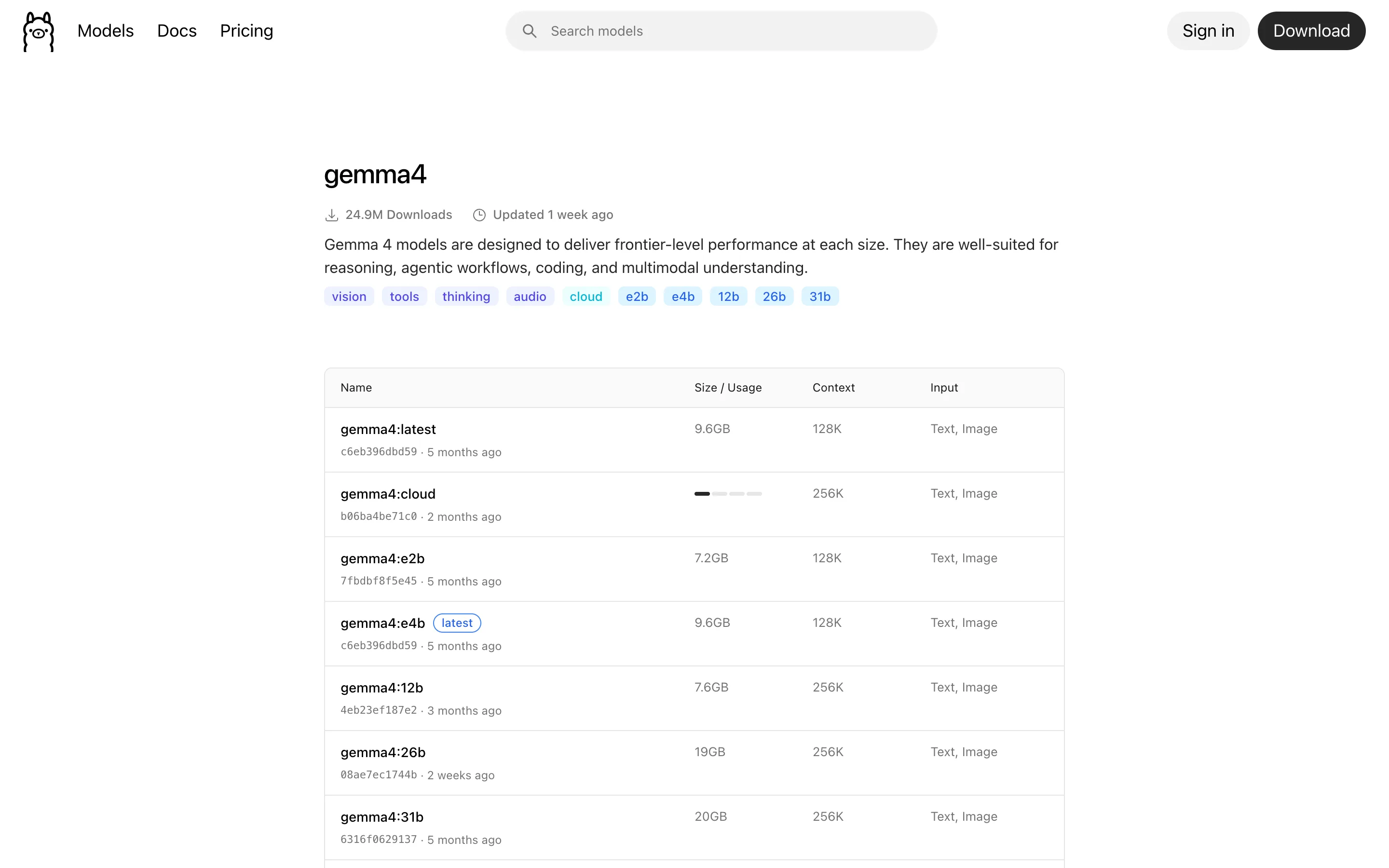

Gemma 4 makes the point on one page. The 12b tag is 7.6 GB and the 26b tag is 19 GB, so roughly double the parameters costs two and a half times the disk. Meanwhile e2b is 7.2 GB despite a much smaller parameter count, because it is a different architecture. Buy for the file size.

Measuring What Fits

This script reads current sizes from Ollama and works out which machines can hold each model with room left to actually run it. Node 18 or newer, no dependencies.

js
Copy
// fit-matrix.mjs - Node 18+, no dependencies. Run: node fit-matrix.mjs
const MODELS = [
  ["gemma4", "12b"], ["phi4", "14b"], ["mistral-small3.2", "24b"],
  ["qwen3.8", "27b"], ["gemma4", "26b"], ["gpt-oss", "20b"], ["gpt-oss", "120b"],
]

// Apple figures are unified memory from apple.com; NVIDIA figures are card VRAM.
const MACHINES = [
  ["laptop iGPU / RTX 3050", 8], ["RTX 4060 Ti 16GB", 16], ["RTX 4090", 24],
  ["RTX 5090", 32], ["Mac Studio M5 Max (base)", 36], ["Mac Studio M5 Max (max)", 128],
  ["Mac Studio M5 Ultra (base)", 96], ["Mac Studio M5 Ultra (max)", 512],
]

// Headroom rule, stated so you can disagree with it:
//   - the OS and desktop need room, so reserve 2 GB (Macs share memory with the display)
//   - KV cache and activations at a moderate context add roughly 20% on top of weights
const OS_RESERVE_GB = 2
const RUNTIME_OVERHEAD = 0.20

async function sizeOf(model, tag) {
  // Sizes live on the model's /tags page, next to each tag link.
  const html = await fetch(`https://ollama.com/library/${model}/tags`, {
    headers: { "user-agent": "Mozilla/5.0" },
    signal: AbortSignal.timeout(25000),
  }).then((r) => (r.ok ? r.text() : ""))
  for (const block of html.split(`href="/library/${model}:`).slice(1)) {
    const name = block.match(/^([a-z0-9._-]+)/)
    const size = block.match(/([0-9.]+)GB/)
    if (name && size && name[1] === tag) return Number(size[1])
  }
  return null
}

const rows = []
for (const [model, tag] of MODELS) {
  const gb = await sizeOf(model, tag)
  if (gb) rows.push({ name: `${model}:${tag}`, gb, need: gb * (1 + RUNTIME_OVERHEAD) })
}
rows.sort((a, b) => a.gb - b.gb)

for (const [name, mem] of MACHINES) {
  const usable = mem - OS_RESERVE_GB
  const cells = rows.map((r) => (r.need <= usable ? "  yes" : "   no").padStart(8)).join("")
  console.log(`${name.padEnd(28)}${String(mem).padStart(5)}${cells}`)
}

for (const r of rows) {
  const min = MACHINES.filter(([, m]) => r.need <= m - OS_RESERVE_GB).sort((a, b) => a[1] - b[1])[0]
  console.log(
    `${r.name.padEnd(24)} ${String(r.gb).padStart(5)} GB weights -> needs ${r.need.toFixed(1).padStart(5)} GB usable` +
      `${min ? `, cheapest machine here: ${min[0]} (${min[1]} GB)` : ", nothing in this list fits it"}`,
  )
}

Run on September 14, 2026:

text
Copy
model sizes read from ollama.com on 2026-09-14
fit rule: weights + 20% runtime overhead + 2 GB for the OS

machine                        GB  gemma4    phi4 gpt-oss mistral qwen3.8  gemma4 gpt-oss
                                    7.6GB   9.1GB    14GB    15GB    18GB    19GB    65GB
-----------------------------------------------------------------------------------------
laptop iGPU / RTX 3050          8      no      no      no      no      no      no      no
RTX 4060 Ti 16GB               16     yes     yes      no      no      no      no      no
RTX 4090                       24     yes     yes     yes     yes     yes      no      no
RTX 5090                       32     yes     yes     yes     yes     yes     yes      no
Mac Studio M5 Max (base)       36     yes     yes     yes     yes     yes     yes      no
Mac Studio M5 Max (max)       128     yes     yes     yes     yes     yes     yes     yes
Mac Studio M5 Ultra (base)     96     yes     yes     yes     yes     yes     yes     yes
Mac Studio M5 Ultra (max)     512     yes     yes     yes     yes     yes     yes     yes

gemma4:12b                 7.6 GB weights -> needs   9.1 GB usable, cheapest: RTX 4060 Ti 16GB
phi4:14b                   9.1 GB weights -> needs  10.9 GB usable, cheapest: RTX 4060 Ti 16GB
gpt-oss:20b                 14 GB weights -> needs  16.8 GB usable, cheapest: RTX 4090 (24 GB)
mistral-small3.2:24b        15 GB weights -> needs  18.0 GB usable, cheapest: RTX 4090 (24 GB)
qwen3.8:27b                 18 GB weights -> needs  21.6 GB usable, cheapest: RTX 4090 (24 GB)
gemma4:26b                  19 GB weights -> needs  22.8 GB usable, cheapest: RTX 5090 (32 GB)
gpt-oss:120b                65 GB weights -> needs  78.0 GB usable, cheapest: Mac Studio M5 Ultra

What the Matrix Says

8 GB is not an entry point, it is a wall. The smallest model here needs 9.1 GB usable. An 8 GB card leaves 6 GB after the OS, so it cannot hold even Gemma 4 12B. This is the single most common mistake in local LLM buying advice: 8 GB cards get recommended constantly, and they force you into models small enough that you would have been better served by an API.

16 GB buys exactly two models. Gemma 4 12B and Phi-4. Both are genuinely good, and if your use case is code completion or classification, a 16 GB card is a reasonable stopping point.

24 GB is the real threshold. It adds gpt-oss:20b, Mistral Small 3.2 and Qwen3.8 27B, which is the first point where a local setup covers general assistant work as well as coding.

The 19 GB cliff is instructive. Gemma 4 26B is only 1 GB larger than Qwen3.8 27B, and that 1 GB moves it from a 24 GB card to a 32 GB card. Margins this tight are why you check the file size rather than the parameter count.

Where Macs Change the Argument

Beyond 32 GB, discrete GPUs get expensive per gigabyte and Apple's unified memory becomes the pragmatic answer. Apple's published Mac Studio specs put the M5 Max at 36 GB of unified memory at 460 GB/s, configurable to 128 GB at 614 GB/s, and the M5 Ultra at 96 GB at 1.2 TB/s, configurable to 256 GB or 512 GB at the same bandwidth.

That 512 GB figure has no consumer equivalent in GPU land. A 65 GB model like gpt-oss:120b simply runs on a Mac Studio, where matching it with cards means multiple GPUs, a motherboard that can host them, and a power supply to match.

The honest counterweight is bandwidth. An RTX 5090's GDDR7 memory is substantially faster than 614 GB/s, and generation speed scales with memory bandwidth once the model fits. So the tradeoff is simple to state: GPUs win on tokens per second for models that fit in VRAM, Macs win on which models fit at all. If your model fits in 24 or 32 GB, a GPU is faster. If it does not, a Mac runs it and the GPU does not run it.

Do Not Forget the Power Bill

A workstation GPU under sustained inference load is a continuous draw, not a spike, and a local setup that runs an agent all day is a 24/7 appliance. At a typical US residential rate a card pulling a few hundred watts around the clock is a real monthly line item, and it belongs in the comparison against an API bill you were trying to eliminate.

That is the actual break-even question. Local inference is not free, it is capital plus electricity instead of per-token pricing. Work out your current monthly API spend first; if it is under a couple of hundred dollars, the hardware may never pay back.

How to Choose

1. Start from the model, not the machine. Pick the model you want to run, look up its real download size, add 20 percent and 2 GB, and that is your minimum.
2. Do not buy 8 GB for LLM work. It does not clear the bar for anything current. If 8 GB is your budget, use a hosted API and spend the money on something else.
3. Treat 24 GB as the default target. It covers the useful middle of the open-weight range in 2026 and leaves room for context.
4. Cross the 32 GB line only for a specific model. Gemma 4 26B is the one that forces it in this list. If you do not need that model, the money is better spent elsewhere.
5. Choose Mac when capacity beats speed. Above roughly 64 GB of model, unified memory is the only practical single-box answer, and you trade tokens per second for the ability to run it at all.
6. Price the electricity before you commit. A 24/7 inference box has a running cost that changes the payback math against an API.

Conclusion

The buying decision for local LLM hardware compresses into one comparison: the file size of the model you want against the usable memory of the machine you are considering, with about 20 percent added for the runtime. On that basis 8 GB fits nothing, 16 GB fits two models, 24 GB fits most of the useful range, and past 32 GB you are choosing between raw bandwidth on a GPU and sheer capacity on a Mac. Run the script against the models you actually intend to use before you spend anything; the answer is usually cheaper than the spec-sheet argument suggests.
